Mechanical Suspensions Single and Double

 Introduction

Mechanical Suspensions Single and Double Details:

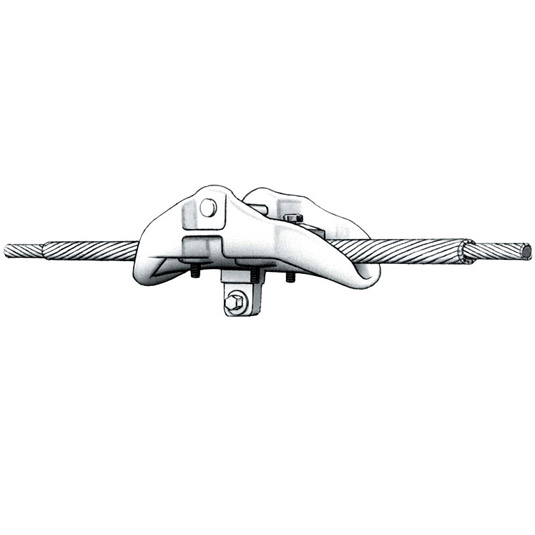

Supporting spans of Optical Ground Wire cable through a wide range of line angle changes, the unique design of the lightweight.HauDong Mechanical Suspension installs easily while supporting vertical, transverse, longitudinal unbalanced loads and angle pulls without damaging the cable strands or affecting optical fber performance. Breakaway bolts ensure proper installation torque while eliminating the need for specialized torque wrenches. The assemblies are designed for fast installation to minimize costs.

Mechanical Suspensions Single and Double Features

1. • Slip strengths: Single Suspension > 1,500 lbs. Double Suspension > 3,000 lbs.(depending on cable design)
2. • Vertical load rating: Single Suspension = 25,000 lbs. Double Suspension = 50,000 lbs.

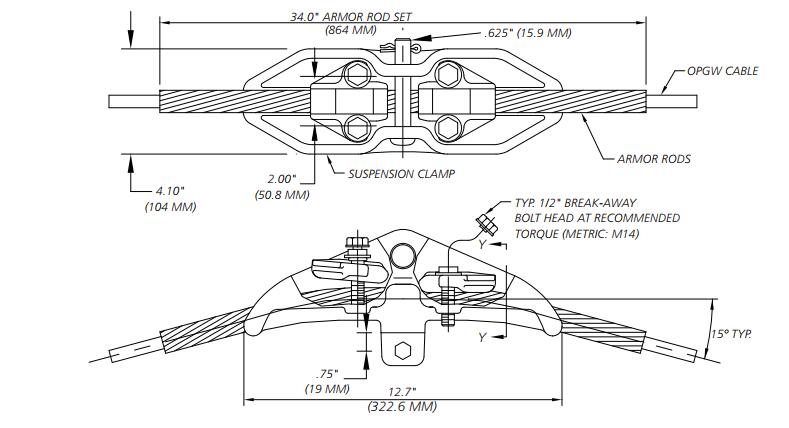

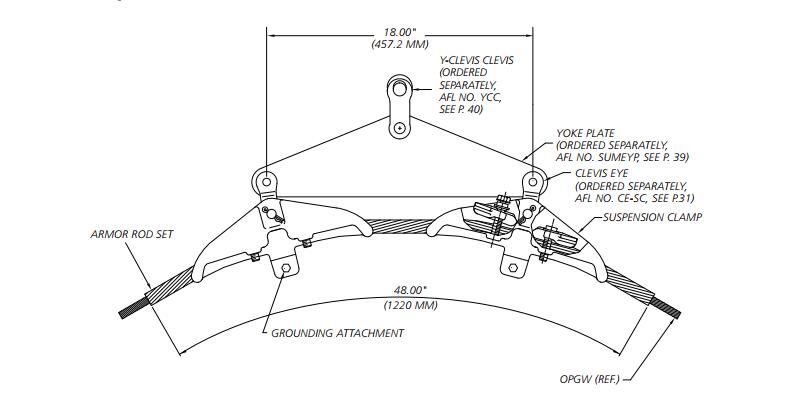

3. • Compact design: Single Suspension = 34" in length.Double Suspension = 48" in length
4. • Meets IEEE 1138 Vibration and Galloping tests
5. • Ideal for helicopter installation
6. • Unique keeper design allows installation without removing bolts(fewer loose parts)
7. • Grounding lug included, eliminating additional accessories for electrical bonding
8. • Shorter than formed wire suspensions, allowing installation from the support structure
9. • Standard assembly includes suspension unit and rods
