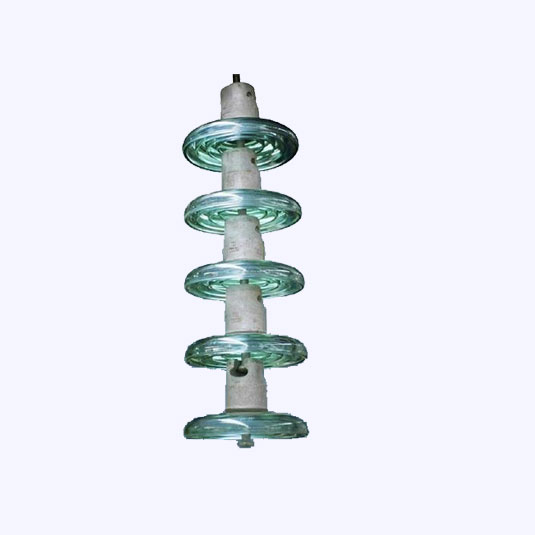

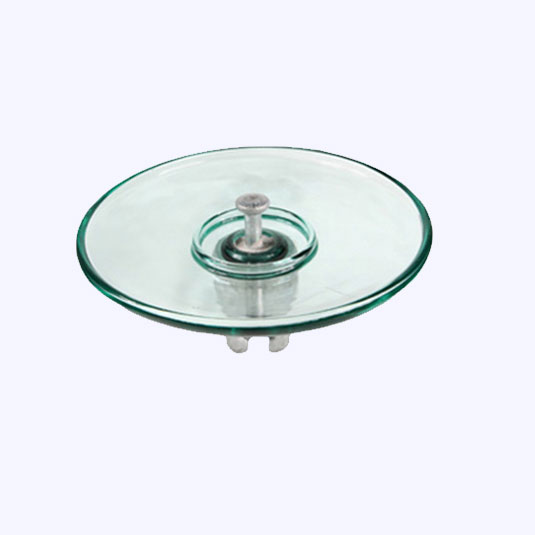

Glass Insulators

We are engaged in offering a qualitative range of Glass Insulators. These are sourced from certified vendors who process these using best available technologies and following international industrial standards. One can avail these Glass Insulators at budget friendly rates.

* Advise Model No or supply drawing when enquire;

manager@huadongcablegroup.com

Whatsapp: +86 139 3907 0673

Get Price Services Online

Introduction

Glass insulators are widely used in power transmission and distribution system. We TCI constantly offer an extensive range of products to satisfy customer’s different requirements. By researching and developing for many years, our products can be operated in up to 1000 kV.

With the availability in various range and grades, these products find their wide application for various industrial applications.

Standard type

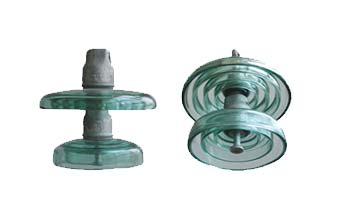

Fog type

Open type

Glass disc insulator with RTV coating type

Feature

Resistance to tracking and erosion Prevent light pollution Resistance to weathering & UV Resistance to chemical & physical degradation by water Volume resistivity Resistance to corona & ozone

Technical Index

Type	Diameter (mm)	Height (mm)	Leakage(mm)	SML (kN)
Standard type.
U70B	255	146	320	70
U100B	255	146	320	100
U120B	255	146	320	120
U300B	320	195	485	300
U550B	380	240	600	550
Fog type
U70BP	255	146	400	70
U100BP	280	146	450	100
U120BP	320	146	450	120
U160BP	360	155	550	160
U210BP	320	170	550	210
U240B	320	170	550	240
Open type
U70B	380	146	365	70
U100B	380	146	365	100
U120B	380	146	365	120
