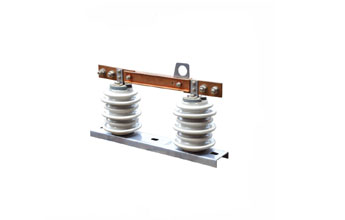

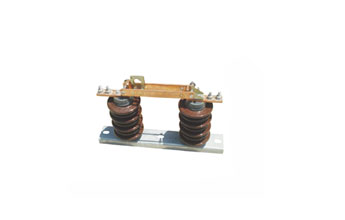

High Voltage Isolation Switch

According to different installation locations, it can be divided into indoor type and outdoor type. According to the number of insulated pillars, it can be divided into single pillar type, double pillar type and three pillar type. Optional equipment is available for each voltage level.
* Advise Model No or supply drawing when enquire;

manager@huadongcablegroup.com

Whatsapp: +86 139 3907 0673

Get Price Services Online

Introduction

High voltage disconnector is an important switch in the electrical system of power plant and substation, which needs to be used together with high voltage circuit breaker.

The disconnector is suitable for indoor devices with three-phase AC 50Hz and rated voltage of 12kV. It is used for connecting, cutting off or switching lines of high-voltage equipment under the condition of voltage and negative load.

HGW9 isolation switch

HGW10 Isolation switch

GW9 isolation switch

GW10 isolation switch

HGW4 isolation switch

HGW5 isolation switch

Technical Index

Type	Rated voltage(KV)	Rated current(A)	4S heat steady current(A)	Shock steady current(A)	Impact withstand voltage		Power frequency withstand voltage(KV)
Type	Rated voltage(KV)	Rated current(A)	4S heat steady current(A)	Shock steady current(A)	To earth(KV)	Isolation distance	To earth(KV)	Isolation distance
HGW9-10W/200	12	200	12500	31500	75	85	38	42
HGW9-10W/400	12	400	12500	31500	75	85	38	42
HGW9-10W/630	12	600	12500	31500	75	85	38	42
HGW9-10W/1000	12	1000	12500	31500	75	85	38	42
GW9-10W/400	12	400	12500	31500	75	85	38	42
GW9-10W/630	12	600	12500	31500	75	85	38	42
