Introduction
Color Coded and Center Marked
For ease of identification to conductor size, the armor rods are color coded in the center
of the rod. This feature also assists in alignment of the rods during installation.

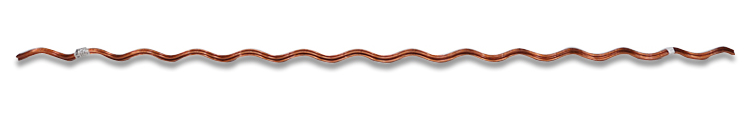

Copperweld Armor Rod
Repair Damage
When no more than 50% of the outside strands on an ACSR or aluminum conductor
have been damaged outside the support point, armor rods may be used to restore 100% of the rated conductance and strength of the line.
Vibration Protection
Installing armor rods improves the conductor's ability to withstand the fatigue forces associated with aeolian type vibration. They do not function as vibration control devices.

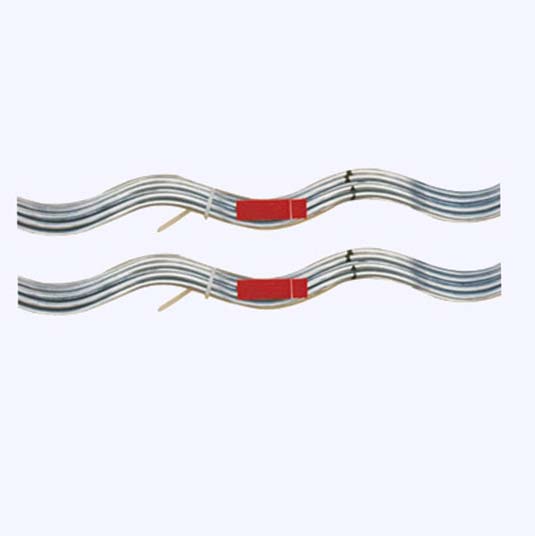

Aluminum/Galvanized Steel Armor Rods
For assistance in determining the proper vibration protection, contact the AFL Technical
Support Team or visit our website at www.Vibrec.com.
Tap Over
Armor rods may be tapped over on ACSR and aluminum conductor, but not on Alumoweld, or steel ground wire. Where tapping is used, it is strongly recommended
that the conductor is thoroughly wire brushed and an oxide inhibitor be applied.
Extra High Voltage Applications
For 345 kV and above, the armor rod ends are modified to eliminate Corona effects and
include a suffix of 'EHV' at the end of the AFL part number

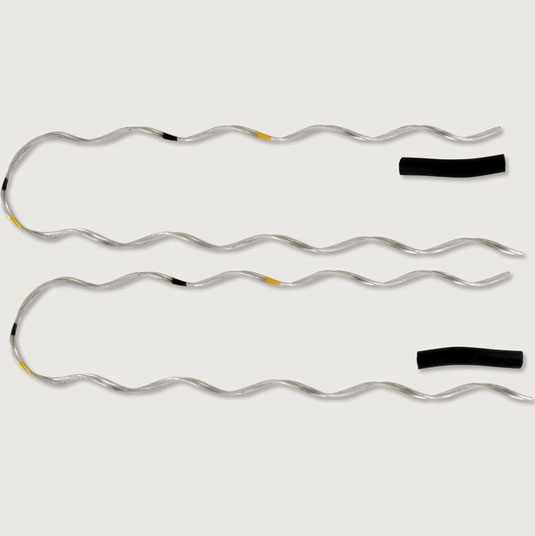

preformed tession clamp
