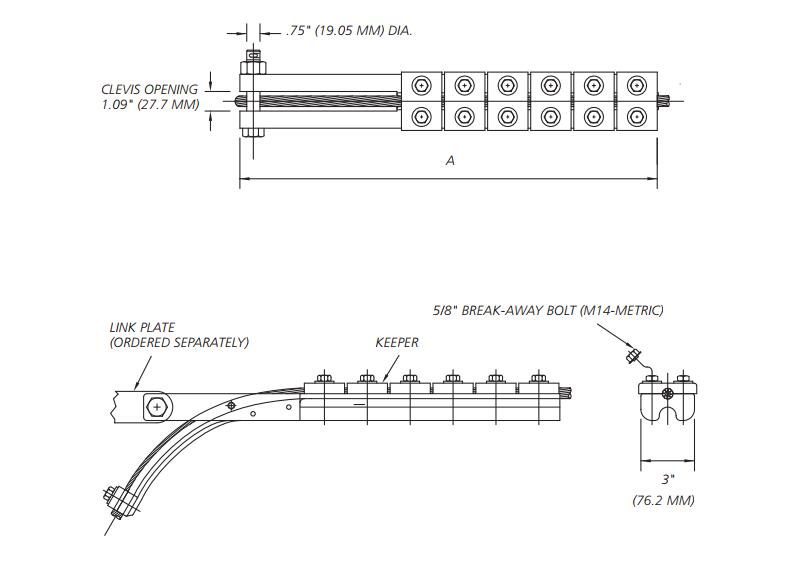

Bolted Dead End for OPGW

 Introduction

Bolted Dead End for OPGW Features:

1. Performance: Sustained load equivalent to 95% of cable RBS
2. Ultimate mechanical strength of dead end components: 40,000 lbs.
3. Break-away bolts ensure proper installation torque while eliminating the need for
4. specialized torque wrenches
5. Optional Cable Guide (recommended) to train Optical Ground Wire down or
6. around structure
7. Drilled and tapped for grounding lug, eliminating additional accessories for electrical bonding
8. Shorter than formed wire dead ends, allowing installation from the support structure
9. Faster installation than competitive designs, reducing installation costs
10. Optional link plate available for extension from structures (see next page)
