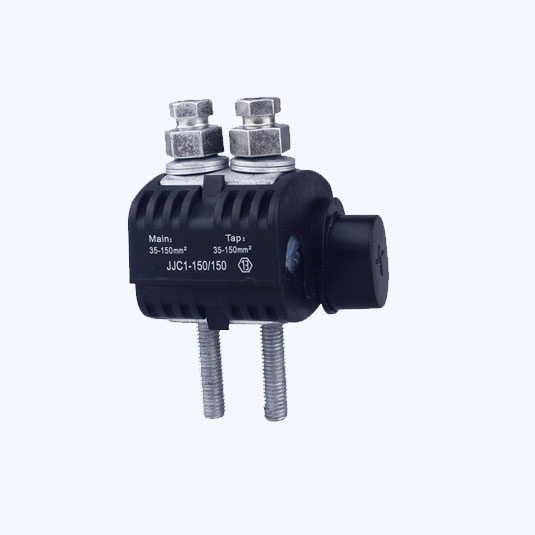

JJC puncture grounding clamp

• Main line: Insulated Aluminium Cable | Tap Line: Insulated Aluminium or Copper Cable

• Body is moulded from tough and weather resistant material

• Comply to standard: EN 50483-4, NFC 33-020, NFC 33-004

P.S.: Custom made is available according to different requirement.

manager@huadongcablegroup.com

Whatsapp: +86 139 3907 0673

Get Price Services Online

Introduction

Insulated piercing connectors are good for all types of LV-ABC conductors as well as connections in service line, building electrical and street lighting systems. Installation is easy by tightening bolts to force teeth to penetrate the insulation of main line and tap line simultaneously. There is no need to strip the insulation on both the main and tap lines.

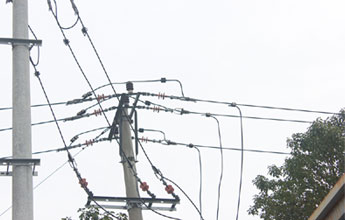

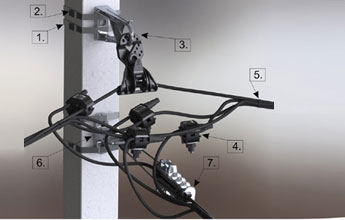

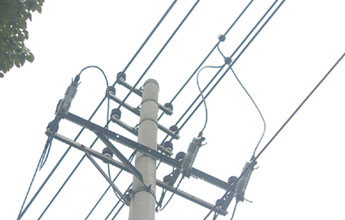

Application

Technical Index

Model	Main Conductor Size (mm2)	Tap Conductor Size (mm2)	Bolts	Box (Pcs)
JJBC16-95/2.5-35	16-95	2.5-35	1	15
JJBC25-95/25-95	25-95	25-95	1	10
JJBC95-185/6-35	95-185	6-35	1	20
JJBC35-185/35-185/2	35-185	35-185	2	6
