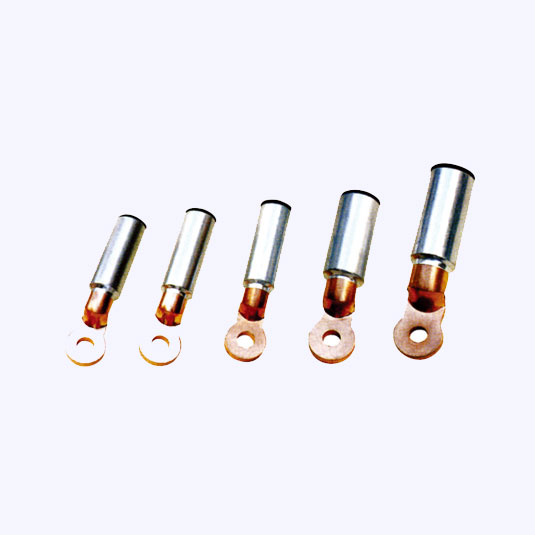

Copper Aluminium Connecting Terminal

(1)High quality of the DT Copper Connecting Terminals

(2)Stable structure

(3)The use one : Distribution and delivery the electricity

(4)Certificate: ISO9001

manager@huadongcablegroup.com

Whatsapp: +86 139 3907 0673

Get Price Services Online

Introduction

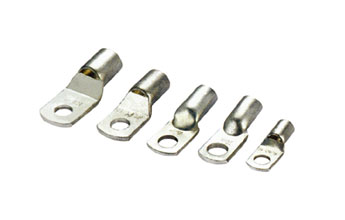

The Copper Connecting Terminals is often used for cable end connection and continuous connection, which can make the cable and electrical connection stronger and safer.

Also name as Copper connecting lug or connecting terminals.

It is a common material for building, electrical equipment, electrical connection, etc.

Connecting Terminals Usage: apply to using the linking between the cable and Equipment tabular joint,Control High and low voltage.

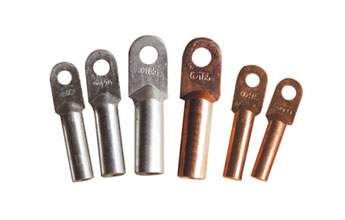

DT DL copper and aluminium terminals

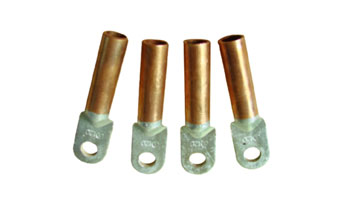

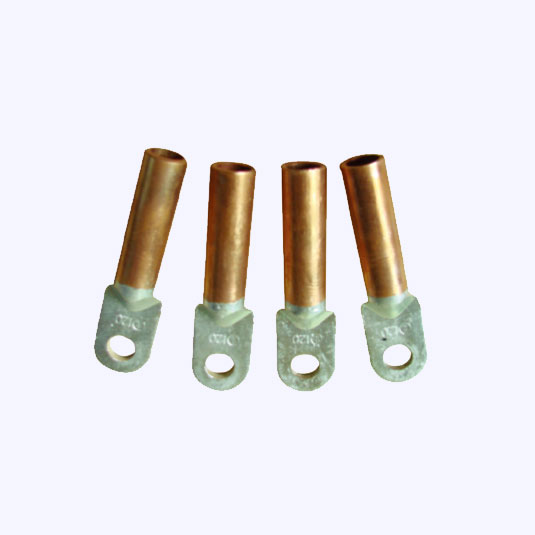

DTGA peephole terminal

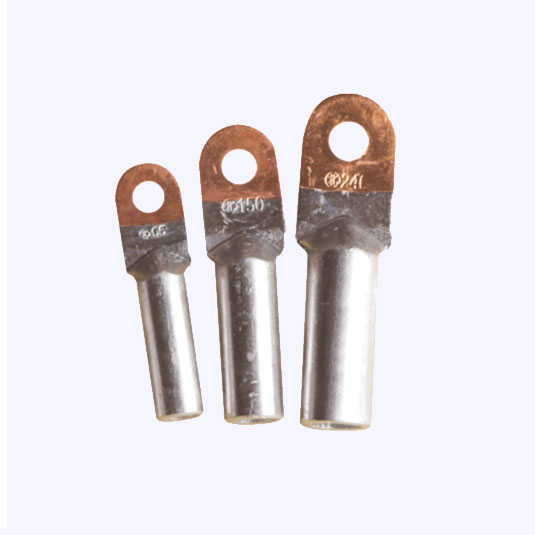

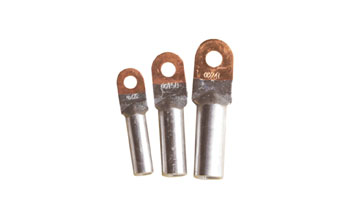

DTL copper aluminium terminal

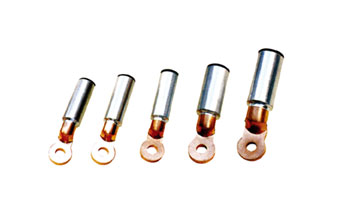

DTL copper-aluminium terminal

DTL copper-aluminum terminal (export model)

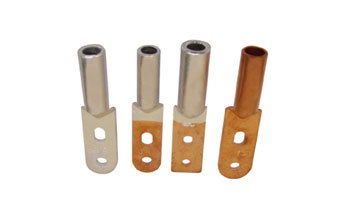

Dual hole terminal

Technical Index

Model	Dimension
Model	φ	D	d	L	L1	W	S
DT-10	8.4	9	5.5	66	30	16	2.2
DT-16	8.4	10	6	67	31	16	2.5
DT-25	8.4	11	7	70	34	18	3
DT-35	10.5	12	8.5	79	36	20	3
DT-50	10.5	14	9.6	87	40	23	3.5
DT-70	12.5	16	12	95	44	26	4
DT-95	12.5	18	13	105	47	28	4.5
DT-120	14.5	20	15	112	50	30	5
DT-150	14.5	22	16	118	54	34	5.5
DT-185	16.5	25	18	125	56	38	6
DT-240	16.5	27	20	136	60	42	7
DT-300	21	30	23	160	65	48	8
DT-400	21	34	26	165	70	54	9
