AVD Series Spiral Vibration Dampers

 Introduction

AVD Series Spiral Vibration Dampers Description

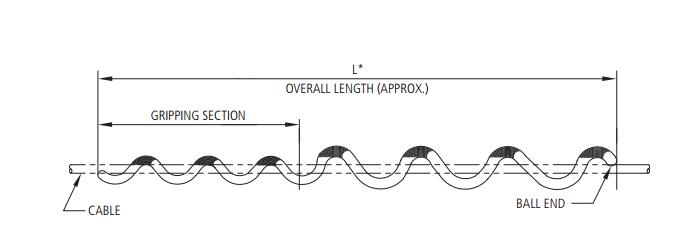

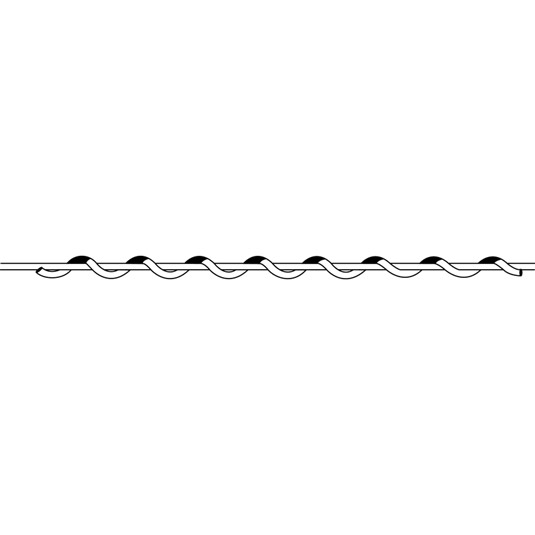

HuaDong's AVD Series Spiral Vibration Dampers are designed to eliminate the damage caused by Aeolian vibration and reduce overall vibration on bare All-Dielectric Self-Supporting (ADSS) cables. Made of weather-resistant, non-corrosive plastic, these dampers have a large, helically-formed damping section sized for the ADSS cable. A smaller gripping section gently grips the ADSS cable. Each damper is marked with the conductor range and color coded to indicate the cable diameter size range.

AVD Series Spiral Vibration Dampers Features:

• Eliminates damage caused by Aeolian vibration and reduces overall vibration on bare ADSS cables
• Large, helically-formed damping section sized for the ADSS cable
• Weather-resistant, non-corrosive plastic
• Installation can be on both sides of the support location

AVD Series Spiral Vibration Dampers Applications:

• Bare ADSS cable
• ADSS hardware (suspension, deadend, armor rods, other SVDs, etc.)

 Technical Index
